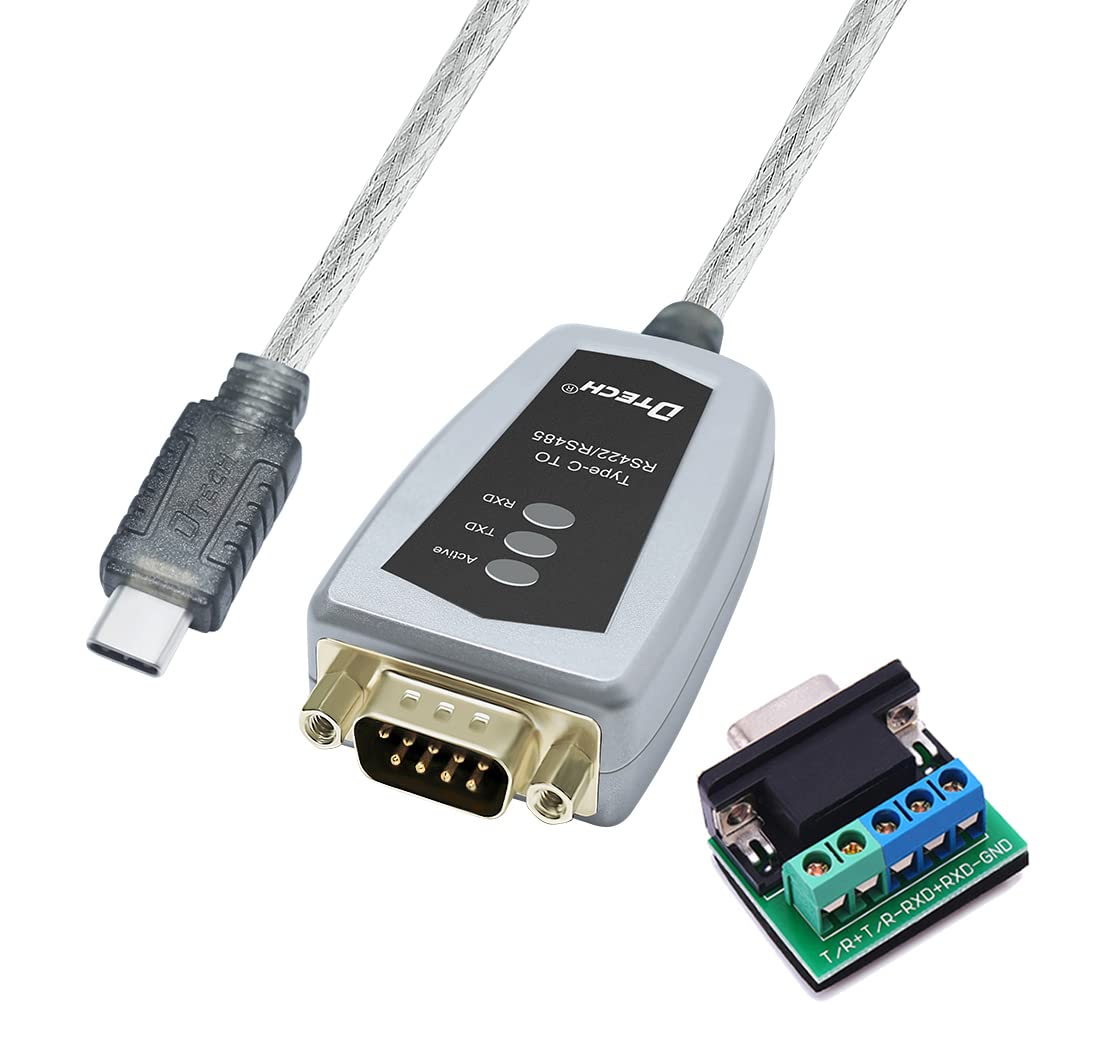

DTECH USB RS485 adapter cable devices with FTDI chipset allows you to connect a RS422 or RS485 serial devices to your computer via USB type C connector. Automatically identify RS422 or RS485 communication mode. Fit for twisted-pair cable or shielding wire connection, DB9 breakout board design is convenient to disassemble. 4 wire Full-duplex communication connection: T/R +, T/R and RXD +, RXD - ; 2 wire half-duplex communication connection: T/R +, T/R -. It is the ideal solution for connecting industrial devices such as motor controller, CNC, laboratory testing and measuring equipment, monitoring devices, material handling equipment, and many more devices where mission critical applications are required. Specific RS422/RS485 TIA/EIA Standard USB-C 3.0 Baud rate: 300bps to 460800 bps Indication LED's for Power, TX and RX No IRQs, DMA or required; No IRQ Conflicts Automatic send data control. Auto detection of data speed; Zero delay automatic transmission Automatic hand-shaking protocol supported Built-in static and 600W surge protection; 15KV ESD protection (Electro-Static discharge) Supports multiple terminals up to 32 RS-485 or RS-422 devices Transmission distance: max 1200 meters for RS-485/422 end Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line half duplex and 4-line full duplex. Application fields: Factory automation system, Distributed control system, Other 485/422 serial device wireless network, LED INFO display equipments, PLC control and management, SCADA, measuring instruments and monitoring system, CNC management, Medical treatment/medication automation, Building automation, Check on work attendance/ Human resource management. What’s Included 1 x 3 feet USB to RS-422 RS-485 Adapter1 x 9 Pin female to 5 position Terminal Board 1 x CD software driver
