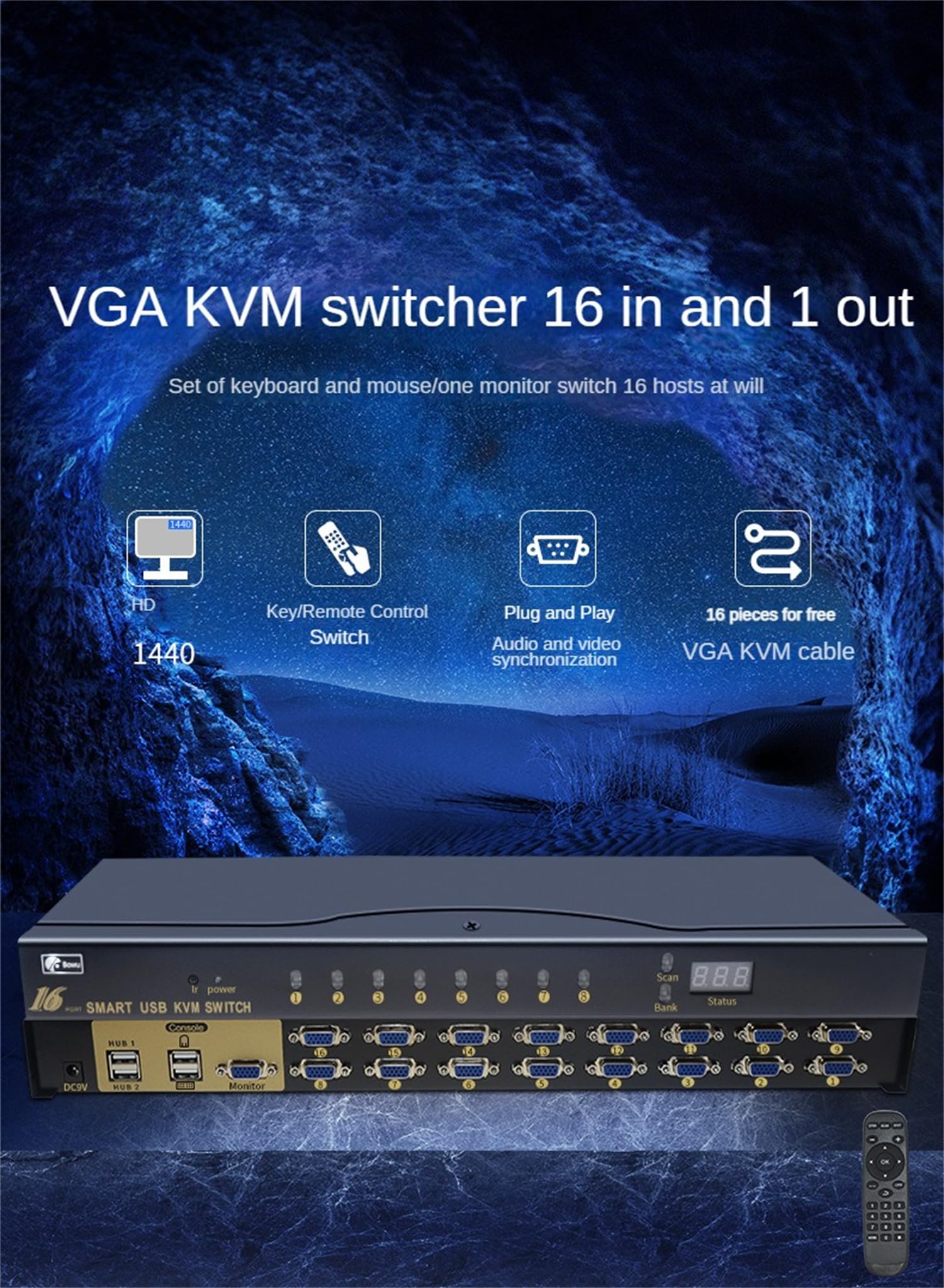

16-Port USB VGA KVM Switch - 16 in 1 Out Projector Video Display with Remote Control & 16 VGA Cables | Compatible with Win98/ME/2KP4/XP/2003, Linux, MAC | Ideal for Server Rooms, Data Centers & Multi-Computer Workstations

PRODUCT NAMED: 16 into 1 USB KVM switcher with 4 ports USB 2.0 interface, with remote control, rack-mounted PRODUCT MODEL: UK1601R PRODUCT INTRODUCTION UK1601R switcher is independent research and development of a high performance product, designed specifically high resolution device for manage multiple computers or DVR. Could to multi channel Keyboard & Mouse & USB & VGA input and one Keyboard & Mouse & USB & VGA output to easily to switch control. It has two USB ports for Keyboard an Mouse, and two USB ports for other USB device, support USB2.0 agreement. Standard 1U rack design, attractive appearance, ease of installation and maintenance. High video bandwidth, resolution max to 2560×1600 or more. Support for remote control, manual and automatic scan switching. It also Compatible with DVR or Industrial PC, for easy to manage and maintain, saving desktop space. TECHNICAL SPECIFICATION Number of Hosts:16 Video Interface:HDDB VGA 15PIN F type Video Format:VGA/SVGA/XGA/SXGA/UXGA Video Bandwidth:600MHz Resolution:Max to 2560*1600@60hz USB device Interface:USB A type USB Agreement:USB2.0 Keyboard Interface:USB A type Mouse Interface:USB A type Switching Mode:Buttons, Remote controller Scan time:1~99s can set Status Lamp:LED digital display System Support:DOS/Windows/Net-ware/Unix/Linux MTBF:>100000 hours Power Consumption:<12W DC9V (optional) Weight:2.2Kg Dimensions (LWH):440*150*45mm ACCESSORIES KVM hosts:1piece Remoter control:1piece 1.8m original KVM cable:16pieces Rack ears:2pieces Manual:1copy

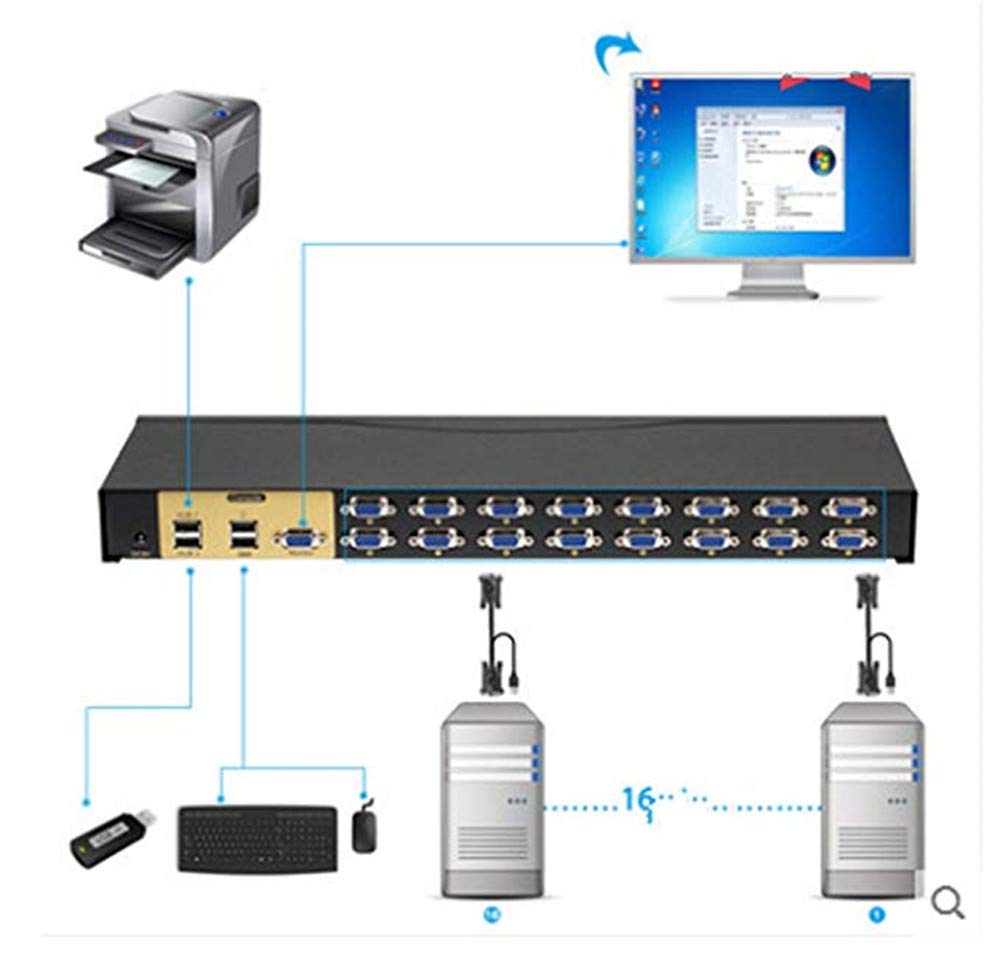

> The rack-mounted 16 computers KVM switcher, and really support DVR & NVR hosts.

> Support for multiple operating systems, plug-and-play.

> USB of keyboard and mouse interface,and support wireless and other USB2.0 device.> Without software control, by button & remote controller to switch the computer.

>*With the automatic detection scan function.> With monitoring status LED digital display.> With the signal buffering, effectively protect the display device.

> High resolution and excellent quality, up to 2560*1600. Video bandwidth up to 600MHz.
