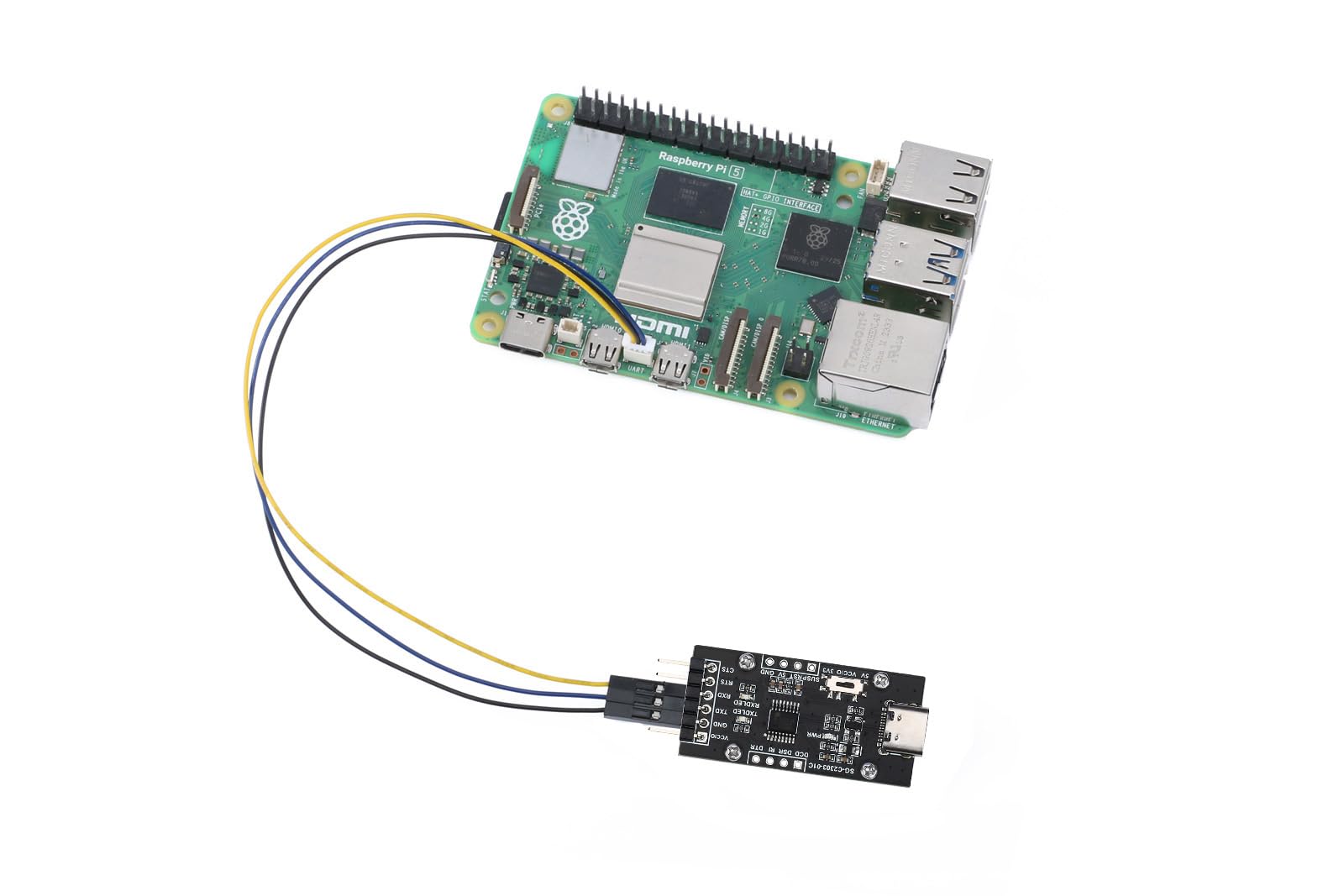

PL2303 USB to UART TTL Serial Converter Module - Type-C Connector, Onboard Power Supply, TXD/RXD LEDs - Compatible with Windows, Linux, Mac OS (3.3V/5V Logic Level Switch) - Perfect for Arduino, Raspberry Pi, DIY Electronics Projects

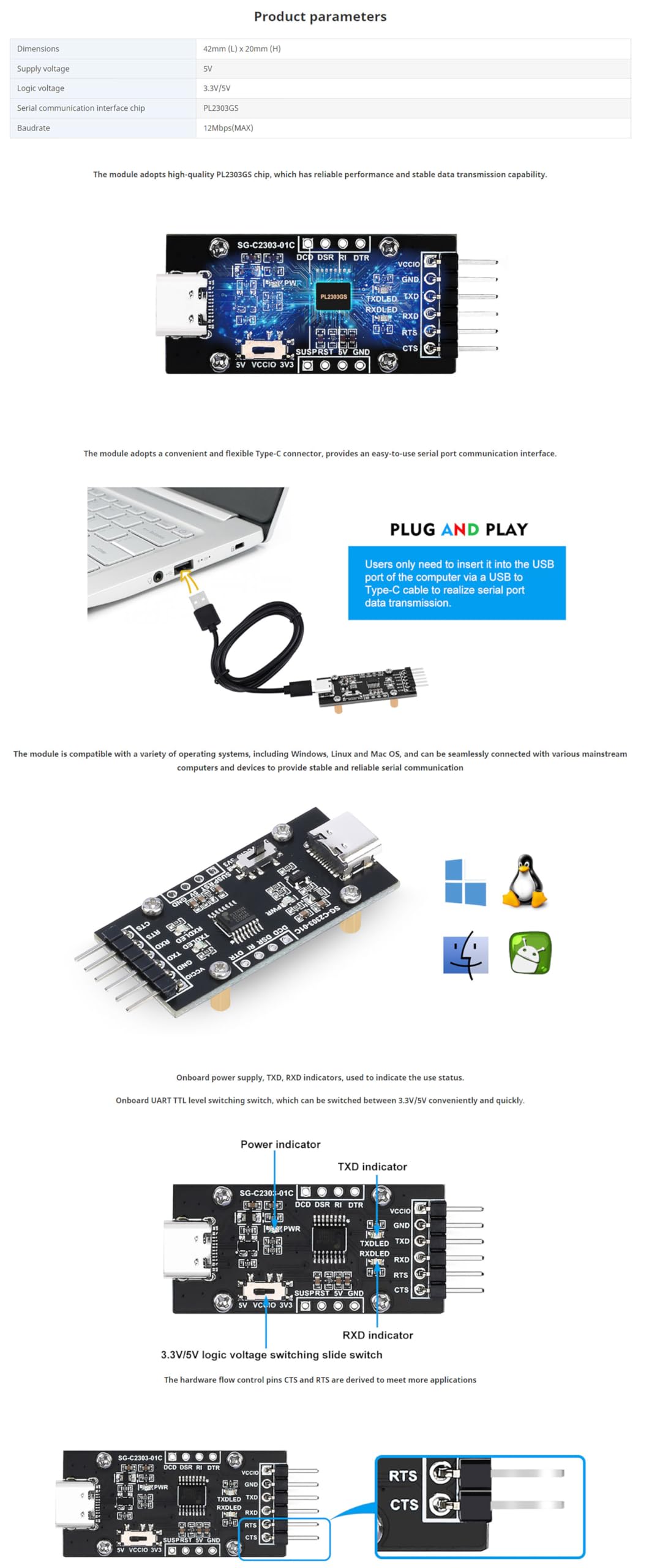

USB to UART TTL Serial Converter USB-to-serial port module; Adopts PL2303GS chip; Supports USB 2.0 standard Features This interface converter is a high-performance USB-to-serial port module, which uses PL2303GS chip as the core, supports USB 2.0 standard, and can realize two-way data transmission between USB and serial ports. The module is easy to use, stable and reliable, and is widely used in various electronic devices. Users can communicate with other devices through these pins to realize the transmission and reception of information. In addition, the product also supports a variety of operating systems, including Windows, Linux and MAC OS. It provides a standard UART(TTL) interface, including TX (transmit) and RX (receive) lines, and also has CTS (clear to send) and RTS (request to send) lines for more flexible control of data flow. The module supports high-speed data transmission rate, which can realize fast and reliable data transmission and ensure efficient communication performance;The module is compatible with a variety of operating systems, including Windows, Linux and Mac OS, and can be seamlessly connected with various mainstream computers and devices to provide stable and reliable serial communication;No need for additional drivers, just plug the module into the USB connector of the computer, it can be automatically recognized and started to use. It has the characteristics of plug and play, convenient and fast;The module supports a variety of configuration options, including the setting of parameters such as baud rate, data bits, stop bits, parity bits, etc., to meet the requirements of different serial devices.The module provides rich flow control functions, such as hardware flow control (RTS/CTS) and software flow control (XON/XOFF), which can realize more reliable data transmission and communication control;Onboard power supply, TXD, RXD indicators, used to indicate the use status.Onboard UART TTL level switching switch, which can be switched between 3.3V/5V conveniently and quickly.The hardware flow control pins CTS and RTS are derived to meet more applications. Advanced Chip for Superior Data Transmission The module features the high-performance PL2303GS chip, renowned for its exceptional reliability and robust data transmission capabilities, ensuring seamless and stable communication across various applications Previous page Type-C PLUG AND PLAY The module features a versatile Type-C connector and a user-friendly serial communication interface Multiple OS Supports Windows, Linux, and Mac OS, ensuring stable serial communication with mainstream devices Status Indicators Onboard status LEDs and 3.3V/5V UART switch for quick setup Flow Control CTS and RTS hardware flow control pins are exposed for broader application support Next page 1 PLUG AND PLAY 2 Multiple OS 3 Status Indicators 4 Flow Control Technical Specifications Dimensions(mm) 42 x 20 Supply Voltage 5V DC Logic Voltage 3.3V / 5V Serial Communication Chip PL2303GS Maximum Baud Rate Up to 12 Mbps Resource Overview 1: Onboard power indicator; 2&6: Reserve 2.54mm pitch control pin pad; 3: TXD LED indicator; 4: UART(TTL) header; 5: RXD LED indicator; 7: 3.3V/5V logic voltage switching slide switch; 8: USB Type-C connector Product recommendations XI-C2303-01C Add to Cart XI-C2102-01C Add to Cart XI- SG-C232-01C Add to Cart XI-USB TO RS485 Add to Cart Customer Reviews 5.0 out of 5 stars 6 5.0 out of 5 stars 5 5.0 out of 5 stars 11 4.2 out of 5 stars 11 Price $9.98$9.98 $9.98$9.98 $11.95$11.95 $14.50$14.50 Dimensions(mm) 42 x 20 45 x 20 45 x 20 74 x 23.6 Supply Voltage 5V DC 5V DC 5V DC 5V DC Logic Voltage 3.3V / 5V 3.3V 3.3V / 5V 3.3V / 5V Serial Communication Chip PL2303GS CP2102-GMR FT232RL FT232RL Maximum Baud Rate Up to 12Mbps 300bps ~ 1Mbps 300bps ~ 3Mbps 300bps ~ 921600bps

This usb to uart module (SG-C2303-01C) is a high-performance USB-to-serial port module, which uses PL2303GS chip as the core, supports USB 2.0 standard, and can realize two-way data transmission between USB and serial ports. No need for additional drivers, just plug the module into the USB connector of the computer, it can be automatically recognized and started to use. It has the characteristics of plug and play, convenient and fast

The PL2303 USB to UART (TTL) Serial Port Module supports a variety of configuration options, including the setting of parameters such as baud rate, data bits, stop bits, parity bits, etc., to meet the requirements of different serial devices

The usb to ttl module provides rich flow control functions, such as hardware flow control (RTS/CTS) and software flow control (XON/XOFF), which can realize more reliable data transmission and communication control

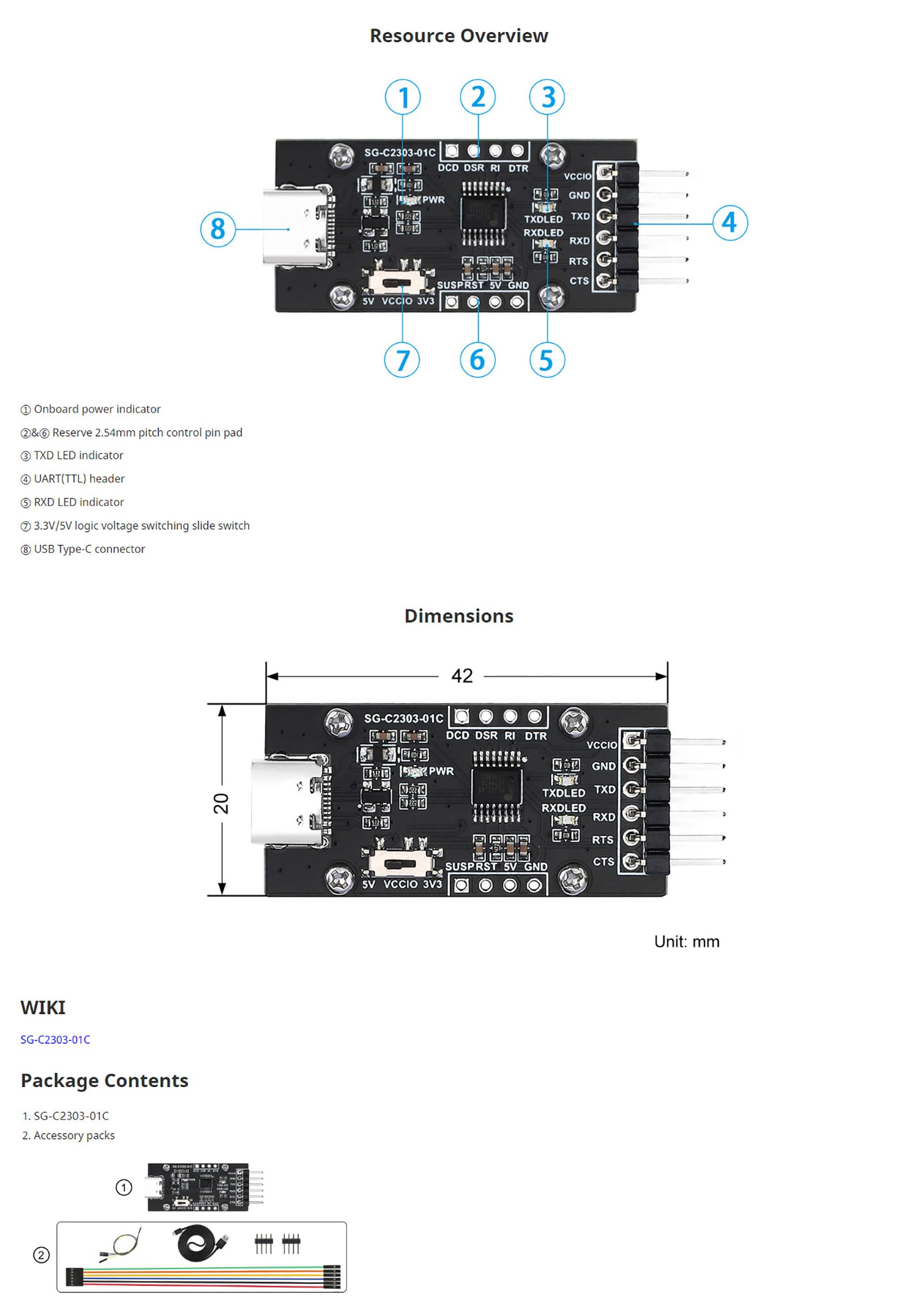

Onboard power supply, TXD, RXD indicators, used to indicate the use status. Onboard UART TTL level switching switch, which can be switched between 3.3V/5V conveniently and quickly. The hardware flow control pins CTS and RTS are derived to meet more applications

The PL2303 serial port module is compatible with a variety of operating systems, including Windows, Linux and Mac OS, and can be seamlessly connected with various mainstream computers and devices to provide stable and reliable serial communication
